RSL15-150F0.77-1.2-1
Rising
Description of Infrared Zoom Lens:
Continuous zoom mechanism:
The main components of this mechanism include a motor, gear, zoom cam, limit device, guide pin, zoom group, compensation group, guide mechanism, and more.
The guide mechanism and zoom cam design are the crucial technologies for the continuous zoom mechanism.
Here's how it works: when the product needs to be zoomed, the control system sends a signal to the motor, which then drives the gear. The gear, in turn, moves the zoom cam.
During this process, the zoom group and compensation group are connected through the guide pin, allowing for a functional relationship. The movement in the two cam slots of the motor enables the linear motion of the zoom combination compensation group.
When the zoom combination compensation group reaches its extreme positions, the pressure switch controls the operation of the drive motor.
The precision potentiometer rotates along with the zoom cam, driven by the gear. As the zoom cam rotates, the potentiometer outputs varying voltages, corresponding to different rotation angles. By converting the voltage value, we can determine the focal length of the system.
Applications of infrared lenses include:
Airborne (UAV)
Security and Surveillance
Maritme and Naval Surveillance
Thermal Imaging Devices
Defense
Thermography
Enhanced Vision

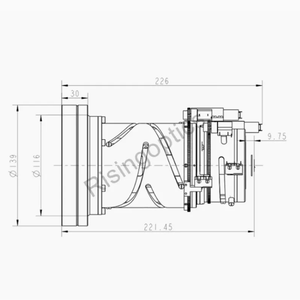

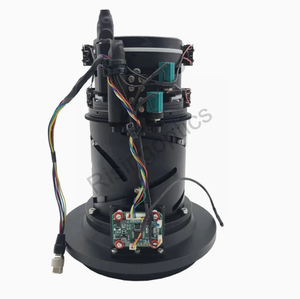

LWIR Uncooled Continuous Zoom Lens Parameters
| Product Name | Uncooled Continuous ZOOM Lens |
| Focal Length | 15-150mm |
| F# | 0.77-1.2 |
| Detector | 640x512-17um |
| Wavelength | 8um-12um |
| Circular FOV | 39.87°x32.36°~4.15°x3.32° |
| Focus Type | Motorized Adjustable |
| Weight | 2.3kg±5% |
| Operating Temperature | -40℃~+60℃ |
| External Coating | DLC |
| Zoom motor type and power supply | DC, 12V |
Products in stock, contact us for best price:
Email: alwson@risingoptics.com
WeChat/Whatsapp: +86 13952018524
Company Profile:
Nanjing Rising Photonics Co., Ltd. is recognized as a leader in high-performance infrared optical solutions. The company has professional production equipment and experienced technical team.
The company's main products include infrared lens, germanium lens and other instruments and equipment specially manufactured for the medical, life science, national defense and security, semiconductor and industrial O E M markets.
From optical design to material procurement to mass production, our company is committed to optimizing product performance, cost, quality and delivery time.
In order to ensure product quality, all products of the company will pass strict machine testing and be confirmed with customers before loading and exporting.
We have professional engineer support, efficient sales team and competitive price advantage, attracting customers from all over the world. The products are mainly sold to developed countries and regions such as Southeast Asia, North America, Europe, Russia, Japan, South Korea, etc., and have received wide acclaim and attention, making Rising a reliable supplier for many O E M customers and R&D institutions around the world.
LWIR Uncooled Continuous Zoom Lens Process Technology:
Infrared lens processing equipment:
1. Inner carving test platform;
2. Microscope;
3. Opto Tech aspheric processing;
4. Polishing machine;
5. Thickness Gauge;
6. Ultrasonic Cleaner;
7. Workshop;
8. Interferometer;
9. High and low tempera ture test chamber;
10. High polishing machine;
11. Optical bench;
12. Raul milling;
13. Atomic force microscope;
14. Centralinstrument;
15. Hand Grinding and Polishing Machine;
FAQ:
Q1: Can items be printed with our own logo?
A: Yes, you only need to send us the source file of the logo.
Q2: Do you provide samples? Is it free or extra?
A: We will charge as little sample fee as possible, and sometimes we may even provide samples for free. However, you must pay us the courier fee by the following courier methods: DHL, TNT, UPS and FEDEX.
Q3: What if the item is broken?
A: Except for human error, we will replace the defect in a completely new way Within 7 days after you get our products.
