RSL12-50F0.95-1.2
Rising

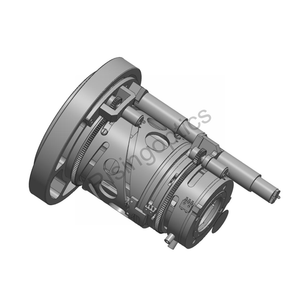

Description of Infrared Zoom Lens:
Continuous zoom mechanism:
It is mainly composed of motor, gear, zoom cam, limit device, guide pin, zoom group, compensation group, guide mechanism and so on.
Among them, the guide mechanism and zoom cam design are the core technologies of the continuous zoom mechanism.
The working principle is: when the product needs to be zoomed, the control system sends a zoom signal to the motor, the motor drives the gear, and the gear drives the zoom cam to move.
At this time, the zoom group and the compensation group meet the functional relationship through the guide pin. The movement in the two cam slots of the motor realizes the linear motion of the zoom combination compensation group.
When the zoom combination compensation group moves to two extreme positions, the work of the drive motor is controlled by the pressure switch.
The precision potentiometer rotates with the zoom cam under the drive of the gear, and the potentiometer outputs different voltages with the different rotation angles of the zoom cam, and the corresponding focal length of the system can be obtained by converting the voltage value.
Applications of infrared lenses include:
Airborne (UAV)
Security and Surveillance
Maritme and Naval Surveillance
Thermal Imaging Devices
Defense
Thermography
Enhanced Vision
LWIR Uncooled Continuous Zoom Lens Parameters
| Product Name | Uncooled Continuous ZOOM Lens |
| Focal Length | 12-50mm |
| F# | 0.95-1.2 |
| Detector | 640x512-12um |
| Wavelength | 8um-12um |
| Circular FOV | 37.37°x29.69°~8.66°x6.97° |
| Focus Type | Motorized Adjustable |
| Imaging Range | Small field of view: 2.5m-∞ Large field of view: 1m-∞ |
| Weight | ≤521g |
| Operating Temperature | -40℃~+60℃ |
| External Coating | DLC |
| Focus motor type and power supply | DC, 12V |
| Zoom motor type and power supply | DC, 12V |
If you have customization needs, please contact us:
Email: alwson@risingoptics.com
Whatsapp: +86 13952018524
Company Profile:
LWIR Uncooled Continuous Zoom Lens Process Equipment:
1. Inner carving test platform;
2. Microscope;
3. Opto Tech aspheric processing;
4. Polishing machine;
5. Thickness Gauge;
6. Ultrasonic Cleaner;
7. Workshop;
8. Interferometer;
9. High and low tempera ture test chamber;
10. High polishing machine;
11. Optical bench;
12. Raul milling;
13. Atomic force microscope;
14. Centralinstrument;
15. Hand Grinding and Polishing Machine;
FAQ:
Q1: Can OEM or ODM be provided?
A: Yes, we provide customized services for customers. You need to provide us with some technical data, such as dimensions and markings.
Q2: Can items be printed with our own logo?
A: Yes, you only need to send us the source file of the logo.
Q3: Do you provide samples? Is it free or extra?
A: We will charge as little sample fee as possible, and sometimes we may even provide samples for free. However, you must pay us the courier fee by the following courier methods: DHL, TNT, UPS and FEDEX.
Q4: What if the item is broken?
A: Except for human error, we will replace the defect in a completely new way Within 7 days after you get our products.
