RS75F1.1M
Rising
Features of LWIR Lens:
LWIR lens, also known as long-wave infrared lens, is a lens specially designed for the 8000-12000nm range (that is, the long-wave infrared wavelength range). At Rising Optics, we produce high-performance LWIR lenses, mainly LWIR athermalization lenses, LWIR aiming lenses, LWIR motorized adjustment lenses, LWIR zoom lenses, etc. These lenses have various applications in medical, industrial, security and defense respectively.
LWIR lenses are used in LWIR cameras to capture light that is invisible to the naked eye. This makes them extremely valuable in a wide range of important applications. For example, our lenses are used in thermal imaging systems, which are very suitable for quality control in factories, and are widely used in predictive maintenance in industrial environments, effectively avoiding the development of potential problems in factories. In addition, the LWIR lens enables clear surveillance imaging even in the presence of smoke or fog.
In addition to this, LWIR lenses can be used for gas leak detection, helping to prevent dangerous situations from escalating. In medical applications, the combination of LWIR lenses and thermal imaging provides a non-invasive and reliable method to detect temperature changes at the cellular level. This allows medical professionals to identify abnormalities.
Applications of infrared lenses include:
Airborne (UAV)
Security and Surveillance
Maritme and Naval Surveillance
Thermal Imaging Devices
Defense
Thermography
Enhanced Vision

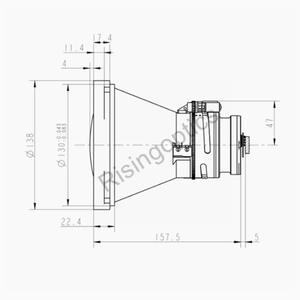

LWIR Uncooled Motorized Lens Parameters:
| Product Name | Uncooled Motorized Lens |
| Focal Length | 75mm |
| F# | 1.1 |
| Detector | 640x512-12UM |
| Wavelength | 8um-12um |
| Circular FOV | 5.86°x4.69° |
| Focus Type | Motorized Adjustable |
| Weight | ≤310g |
| Operating Temperature | -40℃~+60℃ |
| External Coating | AR |
| Focus motor type and power supply | DC, 5V |
Contact us to learn about the application scenarios of uncooled zoom lenses:
Email: alwson@risingoptics.com
Whatsapp: +86 13952018524
LWIR Uncooled Motorized Process Equipment:
1. Inner carving test platform;
2. Microscope;
3. Opto Tech aspheric processing;
4. Polishing machine;
5. Thickness Gauge;
6. Ultrasonic Cleaner;
7. Workshop;
8. Interferometer;
9. High and low tempera ture test chamber;
10. High polishing machine;
11. Optical bench;
12. Raul milling;
13. Atomic force microscope;
14. Centralinstrument;
15. Hand Grinding and Polishing Machine;
FAQ:
Q1: Can OEM or ODM be provided?
A: Yes, we provide customized services for customers. You need to provide us with some technical data, such as dimensions and markings.
Q2: Can items be printed with our own logo?
A: Yes, you only need to send us the source file of the logo.
Q3: Do you provide samples? Is it free or extra?
A: We will charge as little sample fee as possible, and sometimes we may even provide samples for free. However, you must pay us the courier fee by the following courier methods: DHL, TNT, UPS and FEDEX.
Q4: What if the item is broken?
A: Except for human error, we will replace the defect in a completely new way Within 7 days after you get our products.
