RSA13F1.0-160-17
Rising
Infrared Athermal Lens Description:
Focal Length 13mm F1.0 Long Wave Infrared Germanium, Infrared Athermal Lens For 640x512-17um and 640x512-12um Detector.
The athermalization lens principle is commonly employed in infrared thermal imaging technology.
When conducting infrared thermal imaging, we require an infrared electronic camera to capture the images, and this camera must be equipped with a suitable lens for thermal imaging.
Typically, the lenses utilized in thermal imaging employ athermalization techniques for image formation.
Infrared imaging entails gathering the optical signal detected by the lens assembly and transmitting it to the detector. Subsequently, the detector and its corresponding back channel convert the optical signal into an electrical one.
The selection of lens materials in the optical system is contingent upon the specific detector and its intended application.
Distinct infrared lens materials possess unique characteristics, necessitating different processing methods and equipment.

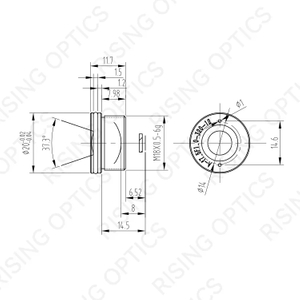

Infrared Athermal Lens Parameters:
| Focal Length | 13mm |
| F# | 1.0 |
| Image Diagonal | 13.9mm (pixel 17um) |
| Average Transmission | ＞85% |
| Circular FOV | (H)45°x(V)37°x(D)56° |
| Back Focus Distance | 17.7mm |
| Back Working Distance | 9.7mm |
| Back Focus Length | 12.03mm |
| Dimensions | 65mm / 27.3mm |
| Focus Type | Fixed Focal |
| Focus Range | 0.3m to infinity |
| Mount Type | M34x0.5 |
| Detector | 640x512-17um / 640x512-12um |
| Weight | 98g |
| Operating Temperature | -20℃ to +60℃ |
| Storage Temperature | -40℃ to +80℃ |
| External Coating | AR Coating Available |
Infrared Lens Processing Equipment:
1. Inner carving test platform;
2. Microscope;
3. Opto Tech aspheric processing;
4. Polishing machine;
5. Thickness Gauge;
6. Ultrasonic Cleaner;
7. Workshop;
8. Interferometer;
9. High and low tempera ture test chamber;
10. High polishing machine;
11. Optical bench;
12. Raul milling;
13. Atomic force microscope;
14. Centralinstrument;
15. Hand Grinding and Polishing Machine;
